304 stainless steel pipe pressure rating

Pipe Size (inches)	Pipe Schedule	Temperature (°F)
Pipe Size (inches)	Pipe Schedule	100	200	300	400	500	600	650	700	750
1"	40	3048	2629	2362	2171	2019	1924	1867	1824	1810
1"	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
1"	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
1.5"	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
1.5"	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
1.5"	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
2"	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
2"	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
2"	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
3"	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
3"	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
3"	160	3840	3312	2976	2736	2544	2424	2352	2304	2280
4"	40	1531	1321	1187	1091	1014	967	938	919	909
4"	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
4"	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
5"	40	1342	1158	1040	956	889	847	822	805	797
5"	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
5"	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
6"	40	1219	1052	945	869	808	770	747	732	724
6"	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
6"	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
8"	40	1073	926	832	765	711	678	657	644	637
8"	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
8"	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
10"	40	974	840	755	694	945	615	596	584	578
10"	80	1609	1388	1247	1147	1066	1016	986	966	956
10"	160	3147	2714	2439	2242	2085	1986	1927	1880	1868

Stainless Steel Piping System Stainless steel piping systems are the product of choice for conveying corrosive or sanitary fluids, slurries, and gases, especially where high pressure, high temperature, or corrosive environments are involved. Due to the aesthetic properties of stainless steel, pipes are often used in architectural applications. Stainless steel tubing can generally be defined as thick-walled tubing whose dimensions are specified by the American National Standards Institute (ANSI). Pipe size is specified by the outside diameter indicated by the NPS (imperial) or DN (metric) designator, sometimes called the "nominal bore size" - the wall thickness is determined by the schedule number. Standard ASME B36.19 covers these dimensions. Stainless steel pipe and fittings are supplied in the annealed condition to facilitate fabrication and ensure optimum corrosion resistance. Atlas Steels can also supply stainless steel tubing with a ground polished finish suitable for architectural applications. Stainless steel pipe is a kind of hollow steel strip, which is widely used to transport fluids, such as oil, natural gas, water, gas, steam, etc. In addition, with the same bending strength and torsional strength, it is lighter in weight, so it is also widely used in the manufacture of mechanical parts and engineering structures. It is also commonly used in the production of conventional weapons, barrels, shells, etc. Stainless steel pipes can be divided into stainless steel seamless pipes and stainless steel welded pipes. Online continuous production of small-diameter stainless steel welded pipes. The thicker the wall thickness, the greater the investment in the unit and welding equipment, and the less economical and practical it is. The thinner the wall thickness, the lower the input-output ratio. The craftsmanship of the product determines its advantages and disadvantages. Generally, the welded steel pipe has high precision, uniform wall thickness, and high brightness inside and outside the pipe (the steel pipe is determined by the surface grade of the steel plate). surface brightness), which can be fixed arbitrarily. Therefore, it exhibits its economy and aesthetics in high precision, medium, and low-pressure fluid applications.

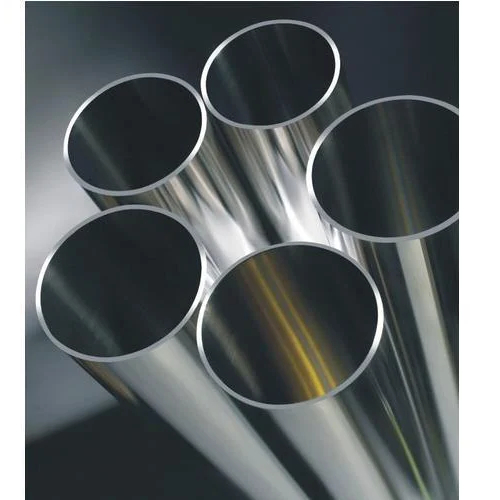

Sus304 Stainless Steel Tube/Pipe
