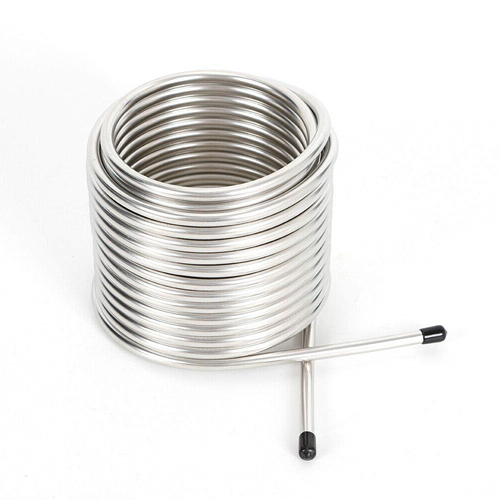

Astm A269 316l Stainless Steel Coil Tube

Classification: stainless steel coil is divided into spiral coil, U-shaped pipe, serpentine pipe, etc Advantages: it has high temperature steam resistance, impact corrosion resistance, anti scaling, not easy to stain, oxidation corrosion resistance, etc. Specification: Generally 8 to 25mm in diameter, 0.6 to 2.0mm in thickness of the plate or mosquito coil coil bent pipe. Application: chemical industry, machinery, electronics, electric power, textile, rubber, food, medical equipment, aviation, aerospace, communications, petroleum and other industrial fields.
send email to us

Products Details

ASTM A269 316 Coils and tubes are components that transfer heat from one component to another. ASTM A269 316 stainless steel coiled tubing is available for heating and cooling applications. High-strength coils withstand these stresses in a variety of conditions. To conduct conduction and heat transfer between two or more components, heat exchange tubes use the conduction process. ASTM A269 316 Stainless Steel Coil is a long metal coil that runs the length of the pipe for easy heat transfer between various components. Coil options for heat exchangers include solid, loose-lined, and blast-clad coils. Every head and closure style is available. Rolling and hydros welling are also available. Due to the designer's versatility in allowing a wide range of pressures and temperatures, duplex stainless steel superheater coil materials are the most common. ASTM A269 316 Stainless Steel Coil Tubing is available in a variety of sizes depending on the intended use and use. Currently, coils are used in automotive, aerospace coils, tableware, cookware, building manufacturers, and outdoor equipment. Coils are commonly used in fuel and hotlines due to their long service life. We also offer Inconel seamless coiled tubing.

ASTM A269 316 Stainless Steel Coil Tubes – Specifications

A269 316 Stainless Steel Coil Tube Specifications
Specifications ASTM A213 / ASTM SA213
Dimensions ASTM, ASME, and API
Size 1/8″NB TO 30″NB IN
316 Pipes & Tubes Size 1/2″ NB – 16″ NB
Thickness 0.35mm to 50mm
Specialized in Large Diameter Size
Schedule SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, SCH 80S, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS, SCH XS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic, Oval, U Shape, Pan Cake Coils, Coiled Etc
Length Single Random, Double Random & Required Length.
End Plain End, Beveled End, Treaded
ASTM A269 Seamless Stainless Steel Tubing is used for low-temperature and high-temperature services. These pipes could be made from austenitic steel types under electric resistant weld, electric fusion weld, or seamless cold drawing mechanisms. The SA269 Tubing can differ and can also have fine heat treated. The SA 269 Tp 316 is more corrosion resistant than the 304 material types and it is used in applications with high pressures and high temperatures as well as low pressure and low temperatures. Therefore the SA 269 Tp 304 and the ASTM A269 Tp316l material-grade pipes have different schedules. These schedules correspond to different wall thicknesses corresponding to different nominal diameters.

ASTM A269 Standard Tubing Chemical Composition

SS GRADE ASTM A269/SA 269 CHEMICAL COMPOSITION % MAXIMUM
C MN P S SI CR NI MO N B NB TI
TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 --- --- --- ---
TP304L 0.035 2.00 0.045 0.030 1.00 18.0-20.0 8.0-12.0 --- --- --- ---
TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 --- --- ---
TP316L 0.035 D 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.00-3.00 --- --- ---
TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 --- --- --- 5C -0.70
TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 10C -1.10 ---

SA269 tubing Tolerance

OD, INCH OD TOLERANCE INCH(MM) WT TOLERANCE % LENGTH TOLERNACE INCH(MM)
+ -
≤1 /2 ± 0.005 ( 0.13 ) ±15 1 /8 ( 3.2 ) 0
> 1 /2~1 1 /2 ±0.005(0.13) ±10 1 /8(3.2) 0
> 1 1 /2~< 3 1 /2 ± 0.010(0.25) ±10 3 /16(4.8) 0
> 3 1 /2~< 5 1 /2 ± 0.015(0.38) ±10 3 /16(4.8) 0
> 5 1 /2~< 8 ± 0.030(0.76) ±10 3 /16(4.8) 0
8~< 12 ± 0.040(1.01) ±10 3 /16(4.8) 0
12~< 14 ± 0.050(1.26) ±10 3 /16(4.8) 0
