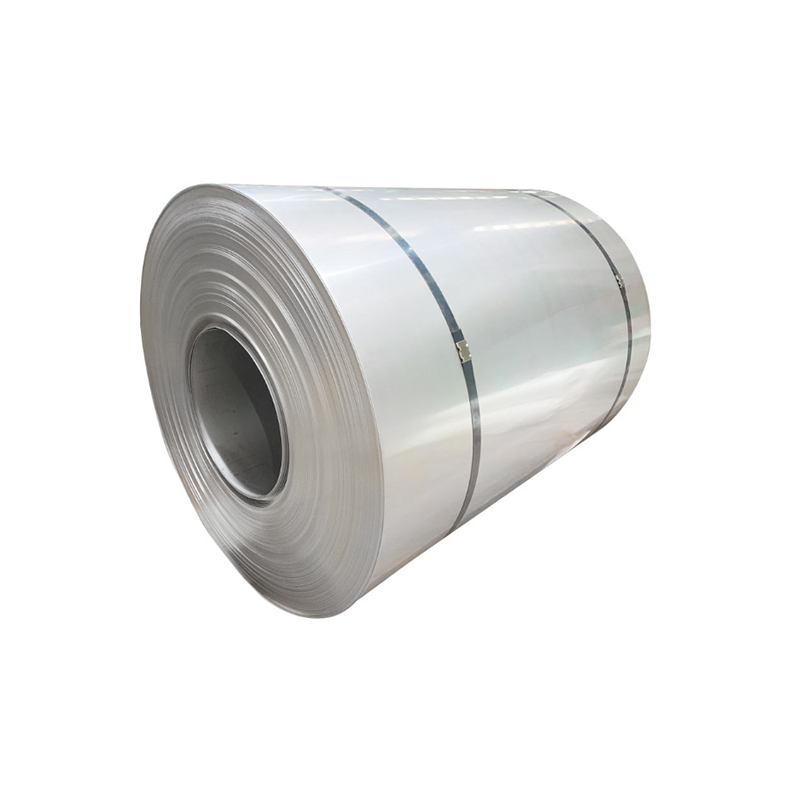

High-quality 316L Stainless Steel Coil, Direct From Factory

316L stainless steel coil coil excellent service provider

It is stainless steel. Heat-resistant. Corrosion-resistant steel. It is austenitic stainless steel. For the national standard, it is 0Cr17Ni12Mo2. It is a better stainless steel than 304. In sea water and other various media. Corrosion resistance is better than 0Cr19Ni9. It is mainly resistant to pitting corrosion. material. It is widely used in auto parts, aviation and aerospace hardware tools, and chemical industry. The details are as follows: handicrafts, bearings, sliding flowers, medical equipment, electrical appliances, etc.

316l stainless steel coi has good corrosion resistance, heat resistance, low temperature strength and mechanical properties, good hot workability such as stamping, bending, and no heat treatment hardening. Uses: tableware, cabinets, boilers, auto parts, medical appliances, building materials, food industry (use temperature -196°C-700°C).The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures. It is the preferred steel for use in marine environments because of its greater resistance to pitting corrosion than other grades of steel. The fact that it is negligibly responsive to magnetic fields means that it can be used in applications where a non-magnetic metal is required. In addition to molybdenum, 316 also contains a number of other elements in varying concentrations. Like other grades of stainless steel, marine grade stainless steel is a relatively poor conductor of both heat and of electricity when compared to metals and other conductive materials.The chemical composition of grade 316 Stainless Steel is outlined in the following table.

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	Min	-	-	-	0	-	16.0	2.00	10.0	-
316	Max	0.08	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316L	Min	-	-	-	-	-	16.0	2.00	10.0	-
316L	Max	0.03	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316H	Min	0.04	0.04	0	-	-	16.0	2.00	10.0	-
316H	max	0.10	0.10	0.75	0.045	0.03	18.0	3.00	14.0	-

Physical properties of 316 grade stainless steel in the annealed condition.

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	At 100°C	At 500°C
316/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740
